Product Summary

The MC9S08QE8CTG is an integrated circuit. Its package options are 32-pin LQFP, 28-pin SOIC, 20-pin SOIC, 16-pin PDIP, 16-pin TSSOP.

Parametrics

Absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to 3.8V; (2)Maximum current into VDD, IDD: 120mA; (3)Digital input voltage, VIn: –0.3 to VDD + 0.3V; (4)Instantaneous maximum current, Single pin limit (applies to all port pins), ID: ±25mA; (5)Storage temperature range, Tstg: –55 to 150℃.

Features

Features: (1)8-Bit HCS08 Central Processor Unit (CPU); (2)On-Chip Memory; (3)Power-Saving Modes; (4)Clock Source Options; (5)System Protection; (6)Development Support.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

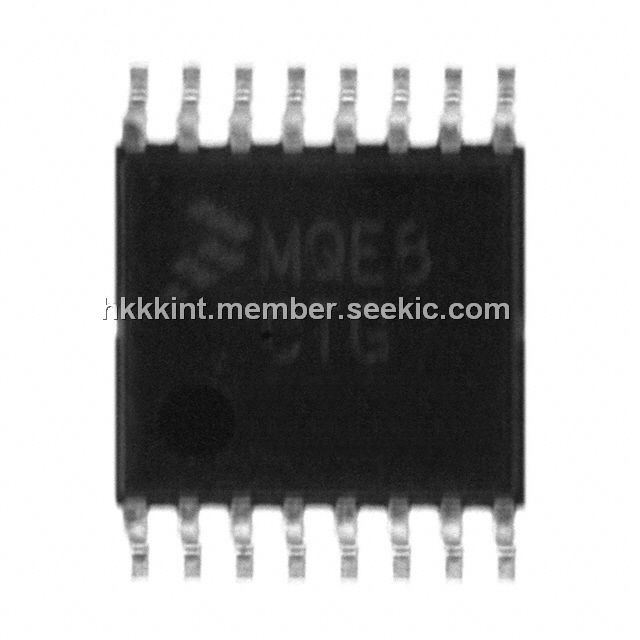

MC9S08QE8CTG
MC9S08QE8CTG

Freescale Semiconductor

8-bit Microcontrollers (MCU) 8KB FLASH; 512 RAM

Data Sheet

0-1: $1.13
1-25: $1.01
25-50: $0.87
50-100: $0.71
MC9S08QE8CTGR
MC9S08QE8CTGR

Freescale Semiconductor

8-bit Microcontrollers (MCU) 8KB Flash, 512Ram

Data Sheet

0-1750: $0.74
1750-2500: $0.74
