Product Summary

The EPM3128ATC100-10N is a low–cost, high–performance device based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the device operates with a 3.3-V supply voltage.

Parametrics

Absolute maximum ratings: (1)Supply voltage:–0.5V to 4.6V; (2)DC input voltage:–2.0V to 5.75V; (3)DC output current, per pin:–25mA to 25mA; (4)Storage temperature:–65℃ to 150℃; (5)Ambient temperature:–65℃ to 135℃; (6)Junction temperature:135℃.

Features

Features: (1)PCI compatible; (2)Bus–friendly architecture including programmable slew–rate control; (3)Open–drain output option; (4)Programmable macrocell flipflops with individual clear, preset, clock, and clock enable controls; (5)Programmable power–saving mode for a power reduction of over 50% in each macrocell; (6)Configurable expander product–term distribution, allowing up to 32 product terms per macrocell; (7)Programmable security bit for protection of proprietary designs.

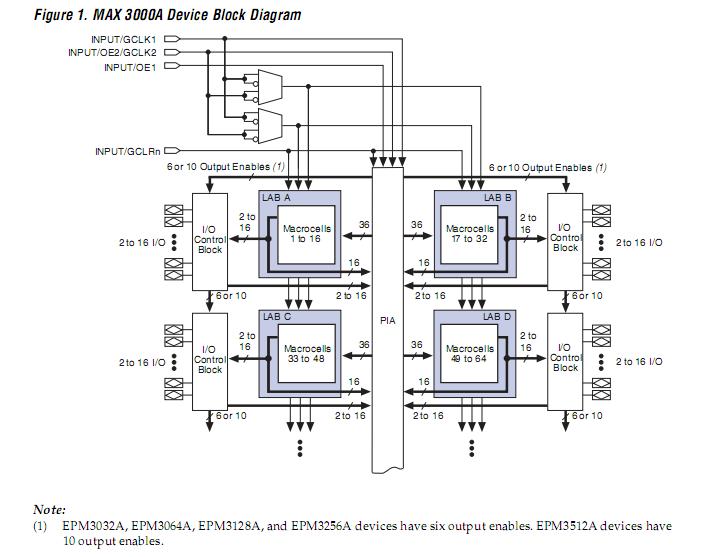

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EPM3128ATC100-10N
EPM3128ATC100-10N


IC MAX 3000A CPLD 128 100-TQFP

Data Sheet

0-1: $5.16
