Product Summary

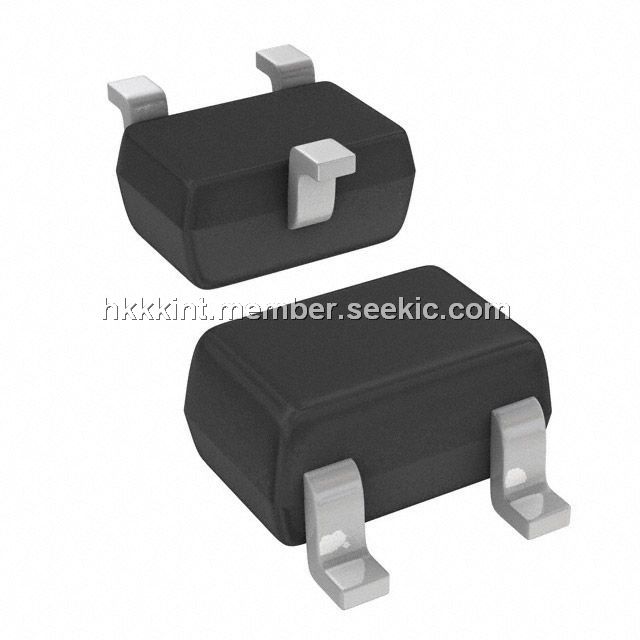

The BAT54SW-7-F is a surface mount schottky barrier diode.

Parametrics

BAT54SW-7-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage: 30V; (2)Forward Continuous Current: 200mA; (3)Repetitive Peak Forward Current: 300mA; (4)Forward Surge Current@ t＜1.0s: 600mA.

Features

BAT54SW-7-F features: (1)Low Forward Voltage Drop; (2)Fast Switching; (3)Ultra-Small Surface Mount Package; (4)PN Junction Guard Ring for Transient and ESD Protection; (5)Lead Free/RoHS Compliant; (6)Qualified to AEC-Q101 Standards for High Reliability; (7)"Green" Device.

Diagrams

BAT54SW-7-F dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAT54SW-7-F
BAT54SW-7-F
Diodes Inc.
Schottky (Diodes & Rectifiers) 30V 200mW
Data Sheet
0-1: $0.38
1-10: $0.25
10-100: $0.09
100-500: $0.06
