Product Summary

The PIC10F222T-I/OT is a low-cost, high-performance, 8-bit, fullystatic Flash-based CMOS microcontroller. It fits in applications ranging from personal care appliances and security systems to low-power remote transmitters/receivers.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias: 40℃ to +125℃; (2)Storage temperature: 65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0 to +6.5V; (4)Voltage on MCLR with respect to VSS: 0 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800mW; (7)Max. current out of VSS pin: 80mA; (8)Max. current into VDD pin: 80mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20mA; (11)Max. output current sunk by any I/O pin: 25mA; (12)Max. output current sourced by any I/O pin: 25mA; (13)Max. output current sourced by I/O port: 75mA; (14)Max. output current sunk by I/O port: 75mA.

Features

Features: (1)8-bit timer/counter register, TMR0; (2)Readable and writable; (3)8-bit software programmable prescaler; (4)Internal or external clock select: Edge select for external clock.

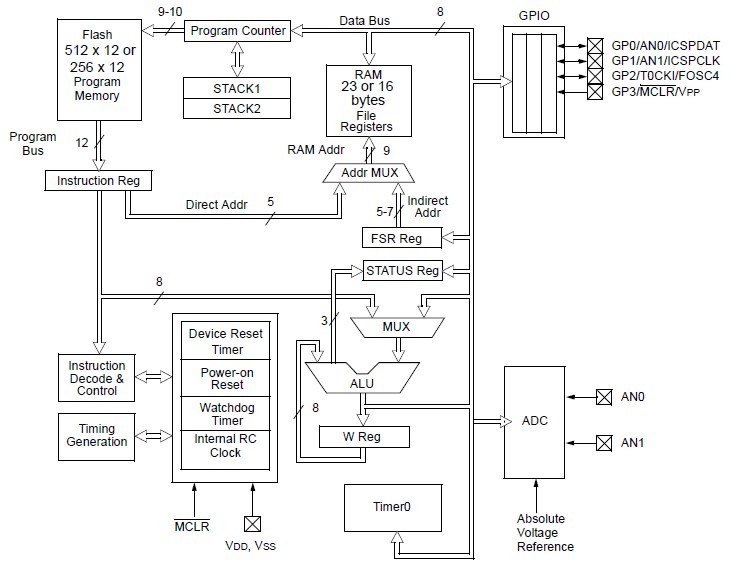

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

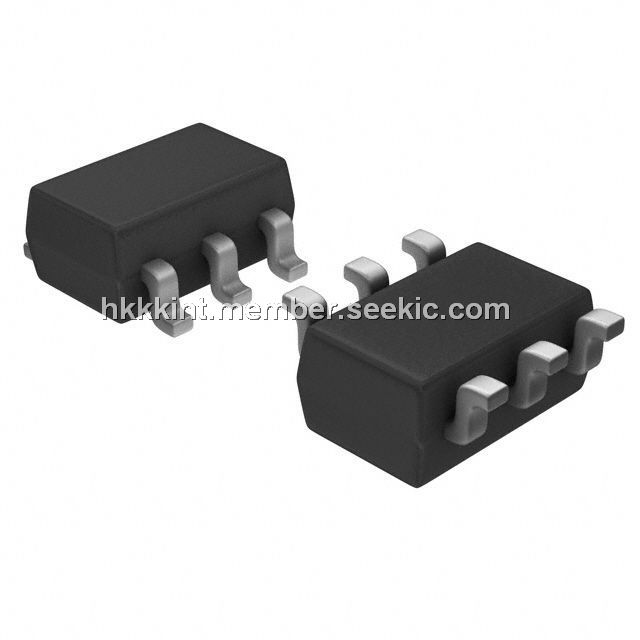

PIC10F222T-I/OT
PIC10F222T-I/OT

Microchip Technology

8-bit Microcontrollers (MCU) 768 B FL 16 RAM

Data Sheet

0-1: $0.41
1-10: $0.33
10-25: $0.30
25-100: $0.28
