Product Summary

The HFBR-4513Z series of plastic fiber optic cables are constructed of a single step-index fiber sheathed in a black polyethylene jacket. The duplex fiber consists of two simplex fibers joined with a zipcord web.

Parametrics

Absolute maximum ratings: (1)Storage and Operating Temperature: -55 to +85 ℃; (2)Recommended Operating Temperature: -40 to +85 ℃; (3)Installation Temperature: -20 to +70 ℃; (4)Short Term Tensile Force: Single Channel: 50 N, Dual Channel: 100 N; (5)Short Term Bend Radius: 25 mm; (6)Long Term Bend Radius: 35 mm; (7)Long Term Tensile Load: 1 N; (8)Flexing: 1000 Cycles.

Features

Features: (1)Compatible with Avago Versatile Link family of connectors and fiber optic components; (2)1 mm diameter Plastic Optical Fiber (POF) in two grades: low cost standard POF with 0.22 dB/m typical attenuation, or high performance extra low loss POF with 0.19 dB/m typical attenuation.

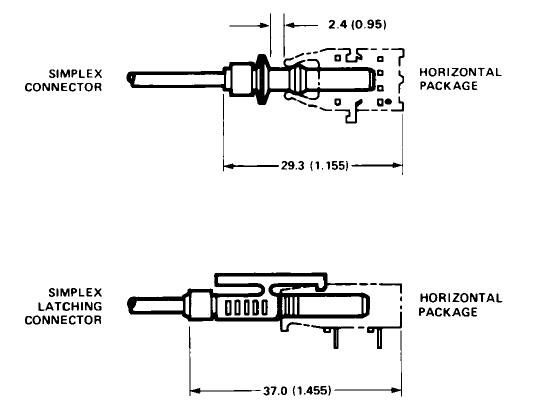

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HFBR-4513Z
HFBR-4513Z
Avago Technologies
Fiber Optic Connectors VERS LINK LATCHING C ON blue RoHS
Data Sheet
0-1: $0.39
1-25: $0.35
25-100: $0.31
100-250: $0.28
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HFBR-0310
HFBR-0310
Avago Technologies
Fiber Optic Development Tools 155 MBd Txcvr Evaluation Kit
Data Sheet
Negotiable
HFBR-0310Z
HFBR-0310Z
Avago Technologies
Fiber Optic Development Tools 125MBd 1300nm Evaluation Kit
Data Sheet
0-3: $132.69
3-25: $121.63
HFBR-0319
HFBR-0319
Avago Technologies
Fiber Optic Development Tools 1X9 Fiber Optic Evaluation Kit
Data Sheet
0-4: $103.50
4-25: $100.05
HFBR-0400
HFBR-0400
Avago Technologies
Fiber Optic Development Tools SMA Fiber Optic Evaluation Kit
Data Sheet
Negotiable
HFBR-0410
HFBR-0410
Avago Technologies
Fiber Optic Development Tools ST Fiber Optic Evaluation Kit
Data Sheet
Negotiable
HFBR-0410Z
HFBR-0410Z
Avago Technologies
Fiber Optic Development Tools DC-5MBd 820nm Evaluation Kit
Data Sheet
0-8: $39.43
8-25: $29.57
25-100: $27.60
100-250: $27.11
