Product Summary
The IR4427STRPBF is one member of the IR4427 series. The IR4427 is a low voltage,high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs.The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched.
Parametrics
Absolute maximum ratings: (1)fixed supply voltage:-0.3 to 25V;(2)output voltage:–0.3 to Vs+0.3V;(3)logic input voltage:–0.3 to Vs+0.3V;(4)junction temperature:150℃;(5)storage temperature:-55 to 150℃.
Features
Features: (1)gate drive supply range from 6 to 20V; (2)CMOS schmitt-triggered inputs; (3)matched propagation delay for both channels; (4)outputs in phase with inputs (IR4427); (5)also available lead-free.

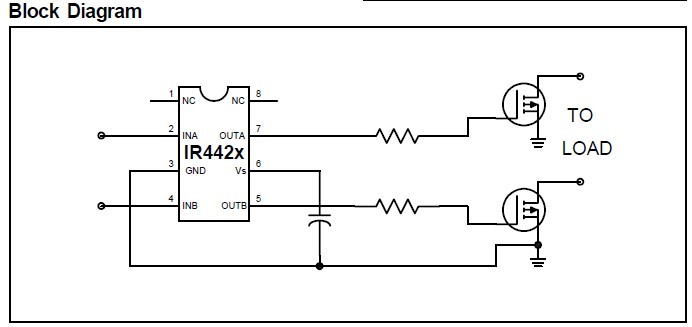

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IR4427STRPBF |
International Rectifier |
Power Driver ICs Dual Lw Sd Drvr |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
IR4426 |
|
IC DRIVER DUAL LOW SIDE 8-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
IR4426PBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
 |
IR4426S |
|
IC DRIVER DUAL LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
IR4426SPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
|
IR4426STR |
|
IC DRIVER DUAL LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
IR4426STRPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
