Product Summary

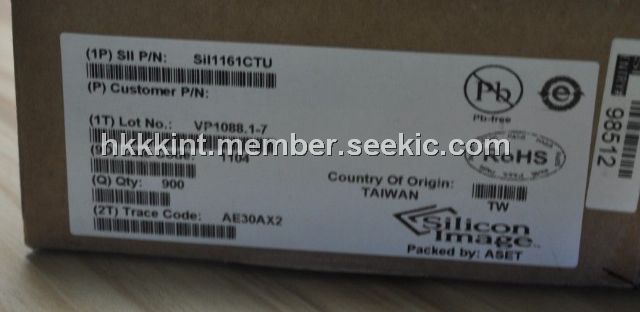

The SII1161CTU is a receiver. It uses PanelLink Digital technology to support high-resolution displays up to UXGA (25-165MHz). It supports up to true color panels (24 bits per pixel, 16M colors) with both one and two pixels per clock.
Parametrics
Absolute maximum ratings: (1)VIH, High-level Input Voltage: 2V min; (2)VIL, Low-level Input Voltage: 0.8V max; (3)VOH, High-level Output Voltage: 2.4V min; (4)VOL, Low-level Output Voltage: 0.4V max; (5)VCINL, Input Clamp Voltage when ICL = -18mA: GND -0.8V max; (6)VCIPL, Input Clamp Voltage when ICL = 18mA: IVCC + 0.8V max; (7)VCONL, Output Clamp Voltage when ICL = -18mA: GND -0.8V max; (8)VCOPL, Output Clamp Voltage when ICL = 18mA, OVCC + 0.8V max; (9)IOL, Output Leakage Current when high impedance: -10 to 10μA.
Features
Features: (1)Supports 10 meter cables at UXGA speed; (2)Flexible output drive controls to optimize timings for all possible configurations; (3)3.3V operation; (4)Time staggered data output for reduced ground bounce and lower EMI; (5)ESD tolerant to 5kV (HBM) on all pins; (6)Compliant with DVI 1.0; (7)Guaranteed interoperability with DVI-compliant transmitters; (8)Low power standby mode; automatic entry into standby mode with clock detect circuitry; (9)Pb-free packaging.

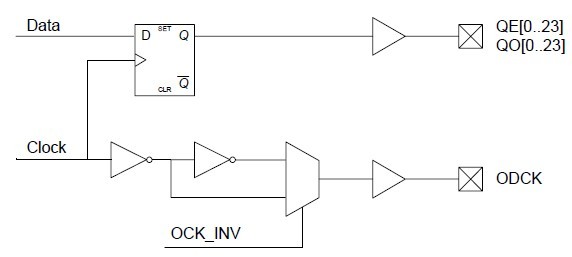

Diagrams
 |
